2220L

3/4 HPs Chain Drive Opener with Built-In Camera and myQ Connectivity

• Worry-Free Warranty: Built to last and backed by a 5 year motor and 1 year chain warranty for peace of mind.
• Reliable Chain Strength: The DC motor and chain drive system combine for smooth, low-noise performance that delivers reliability and strength.
• Live Garage View: Monitor your garage in real time with a wide-angle camera and the myQ app.
• Frequent Use Power: Engineered for higher-cycle homes, LiftMaster’s DC motor delivers lift capacity similar to a ¾ HP AC motor*—with smooth, consistent strength designed to last.
• Built-In Light: Safer entry and exit, day or night
• myQ Connectivity: Open. Close. Monitor. From anywhere.

Home Connectivity with myQ

• myQ® Connectivity: Open. Close. Monitor. From anywhere.
• Live Garage View: Monitor your garage in real time with a wide-angle camera and the myQ app.

• Motor: 12V DC, 53 RPM, automatic thermal protection, permanent lubrication
• Mechanics
  • Steel chassis, T-Rail and trolley, full reinforced chain drive mechanism (63:1 gear reduction and adjustable door arm)
  • Auto-force adjustment for changing weather and environmental conditions
  • Electronic limits for easy setup
  • DC Wi-Fi logic board with built-in surge suppressor (for replacement logic boards, order part 030DCT)
• Power: 120V AC, 60 Hz voltage, 2.7A current rating, UL listed, 4′ power cord (3-prong)
• Speed: 9″ per second upward, 6.5″ per second downward
• Lighting: 60-Watt Max Equivalent LED (Bulb Not Included)

• Security+ 3.0™
  • Radio controls: Operating range up to 1300 ft; Operating temperature: -40F to 150F; One 3-Button Remote Control (L993S). Remote Control Code Format: Security+3.0; Garage Door Opener Code Format: Security+3.0; Anti-burglary coding.

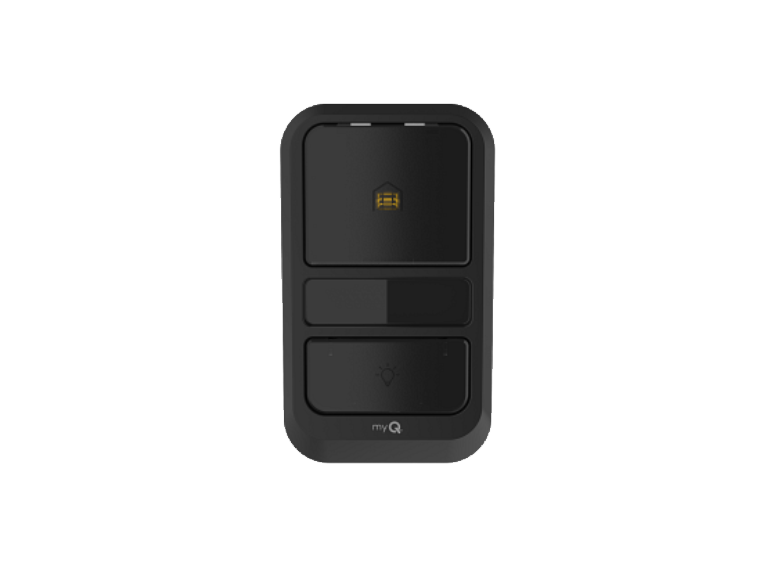

• Encrypted controls: Multi-Function Control Panel (L955W): Manage lighting and access from one spot.
• myQ® Radio: 902-928 MHz 50-channel FHSS (frequently hopping spread spectrum); Provides 2-way communication from garage door opener and myQ accessories; Enables monitoring and control of garage door openers via smartphone or tablet.
• HomeLink® compatible (version 4.0 or higher): Visit HomeLink.com for additional information.
• Live Garage View: Monitor your garage in real time with a wide-angle camera and the myQ app.
• Built-In Light: Safer entry and exit, day or night
