6580L

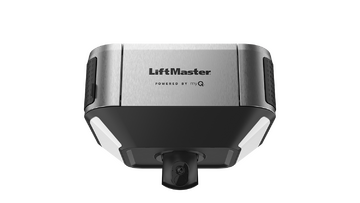

LiftMaster 1 HPs Belt Drive Opener with Battery Backup and myQ Connectivity

• Worry-Free Warranty: Built to last and backed by a 6 year motor and belt warranty for peace of mind.
• Battery Backup: Keeps your garage working—even when the power goes out.
• Ultra-Quiet Belt Drive: Engineered for quiet, these openers are powered by DC motors and reinforced belts that glide the door with minimal noise—perfect for homes with living spaces near the garage.
• All-Day Visibility: The 360° camera with adjustable wide-angle and full night vision lets you see every corner of your garage – day or night.
• Frequent Use Power: Engineered for higher-cycle homes, LiftMaster’s DC motor delivers lift capacity similar to a 1 HP AC motor*—with smooth, consistent strength designed to last. *For comparison only. DC motor lift capacity is not measured in HP.
• Dual LED Lighting: Brighter, wider coverage—no dark corners.
• myQ Connectivity: With the myQ app, control and monitor your garage from anywhere, anytime.

Home Connectivity with myQ

• myQ® Connectivity: Open. Close. Monitor. From anywhere.

• Motor: 12V DC, 53 RPM, automatic thermal protection, permanent lubrication
• Mechanics
  • Steel chassis, T-Rail and trolley, full reinforced belt drive mechanism (63:1 gear reduction and adjustable door arm)
  • Auto-force adjustment for changing weather and environmental conditions
  • Electronic limits for easy setup
  • DC Wi-Fi logic board with built-in surge suppressor (for replacement logic boards, order part 030DCT)
• Power: 120V AC, 60 Hz voltage, 2.7A current rating, UL listed, 6′ power cord (3-prong)
• Speed: 9″ per second upward, 6.5″ per second downward
• Lighting: 1,500 lumens with Dual LED

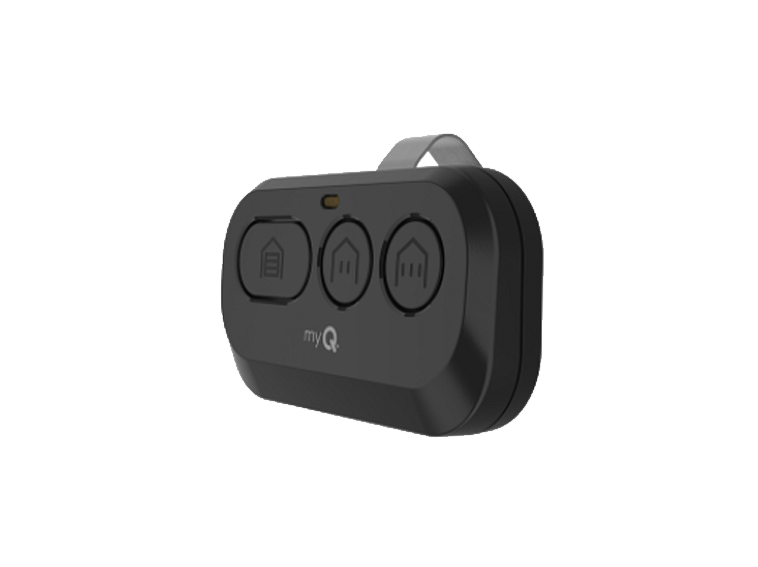

• Security+ 3.0™ Radio controls: Operating range up to 1300 ft; Operating temperature: -40F to 150F; One 3-Button Remote Control (L993M). Remote Control Code Format: Security+3.0, premium remote control is backwards compatible to all LiftMaster® openers manufactured since January, 1997; Garage Door Opener Code Format: Security+3.0; Anti-burglary coding.

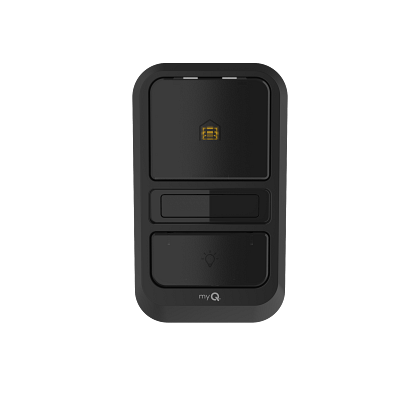

• Encrypted controls: Motion-Detection Control Panel (L957W); Program remote controls, keypads and myQ accessories; Maintenance Alert System, easy Wi-Fi setup.
• myQ® Radio: 902-928 MHz 50-channel FHSS (frequently hopping spread spectrum); Provides 2-way communication from garage door opener and myQ accessories; Enables monitoring and control of garage door openers via smartphone or tablet.
• HomeLink® compatible (version 4.0 or higher): Visit HomeLink.com for additional information.

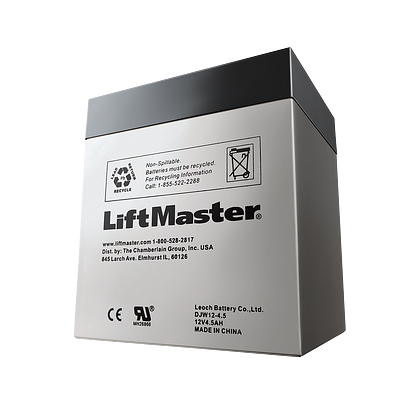

• Never locked out: When the power goes out, LiftMaster keeps you moving. With built-in Battery Backup, your garage door continues working—so you’re never locked out when it matters most.
• All-Day Visibility: The 360° camera with adjustable wide-angle and full night vision lets you see every corner of your garage – day or night.
